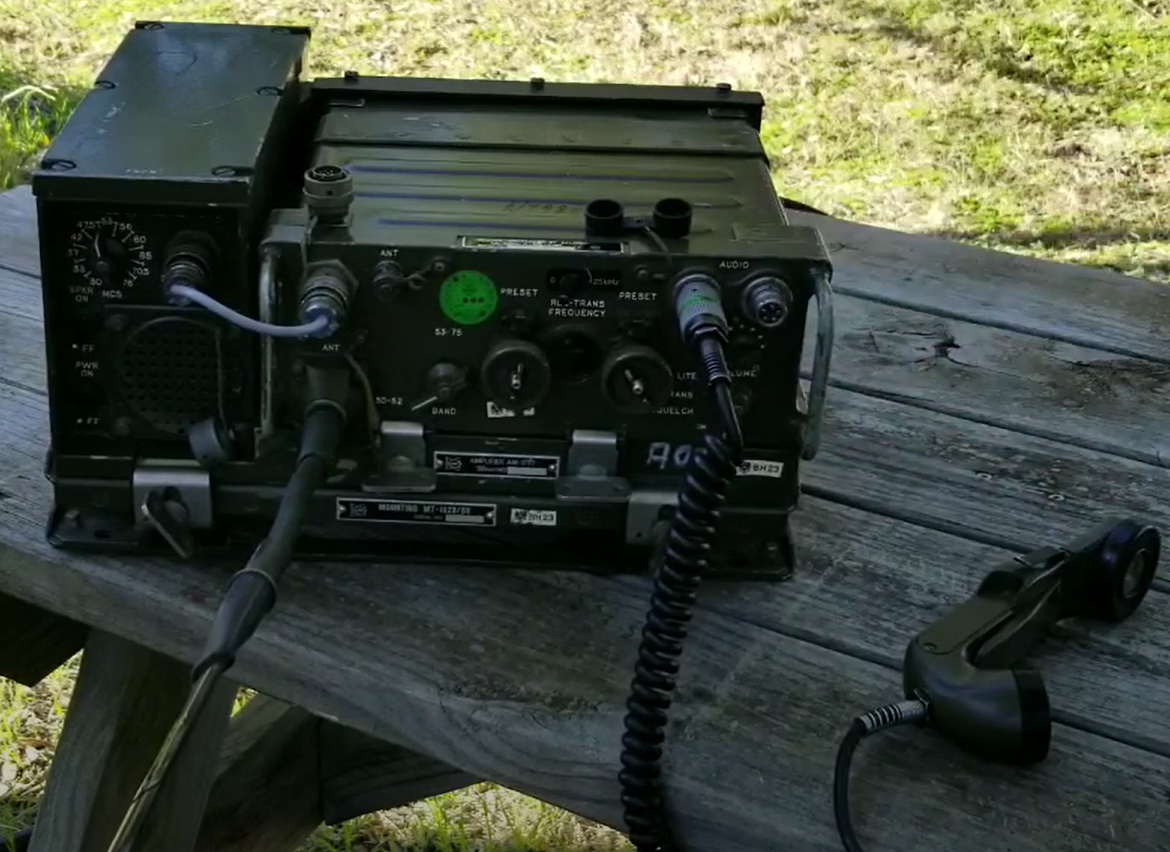

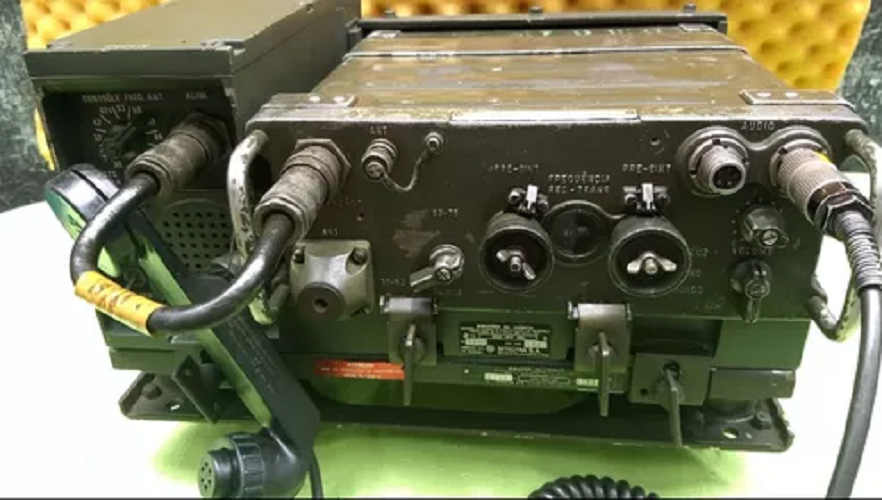

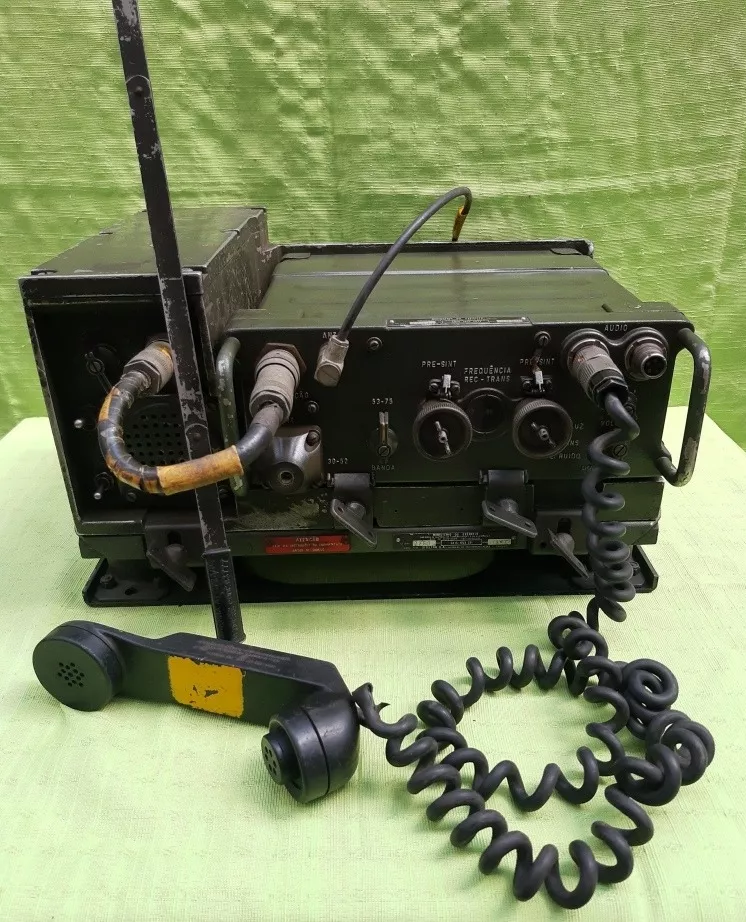

PRC77 / RC201 Military Vehicle radio complete set Mount MT-1029 and Amplifier
Description:
1. Presentation:
The EB11/ERC-201 RADIO SET has the same characteristics as the EB11/ERC-110 Radio Set, differing in its vehicular installation. It has:
– Short range;
– Provides communication between manned weapons and Vtr (URUTU);
– Group 2 – VHF – FM family.
2. Technical characteristics:
The. Frequency range: 30 to 75.95 MHz
B. Number of Channels: 920
w. Channel Spacing: 50 Hz
d. Signal Type: Phonics (voice signal)
It is. Power: 12.0 or 24.0 VDC (vehicle)
f. Modulation Type: FM
g. Output Power: 1.5 to 5 W
H. Range: 8 km (expected)
3. The kit comes with:

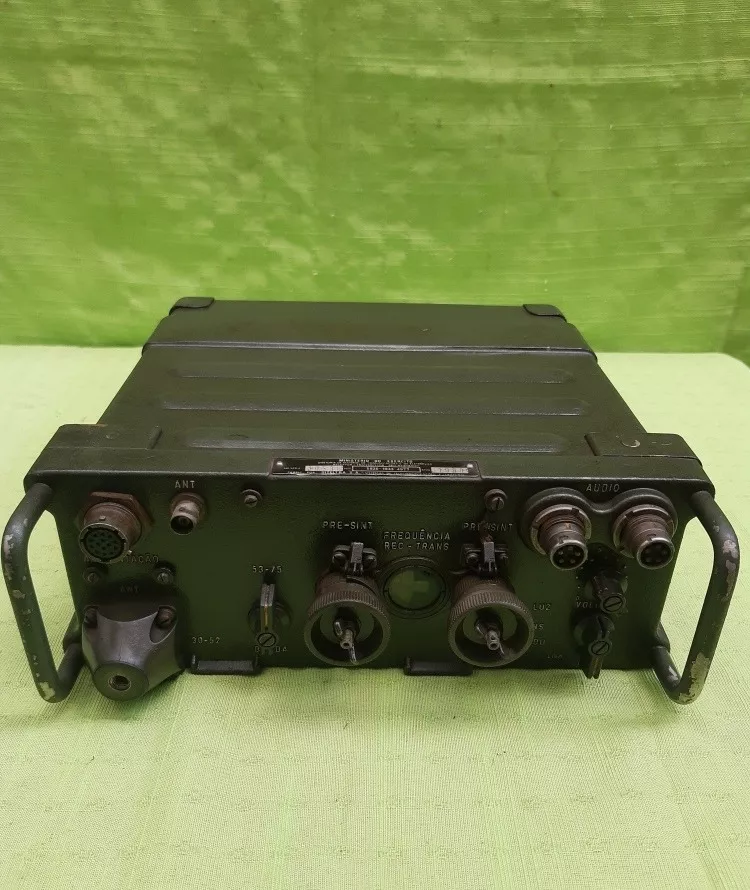

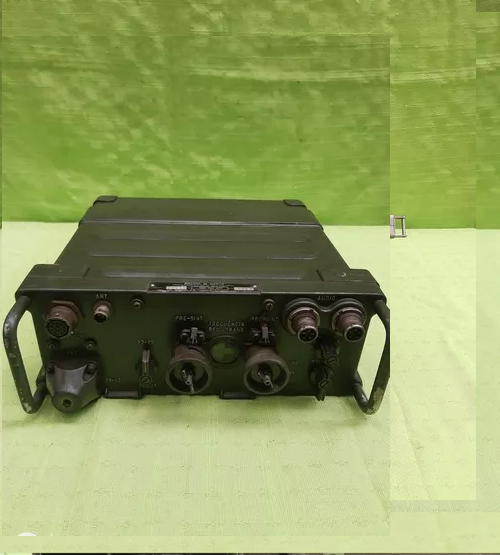

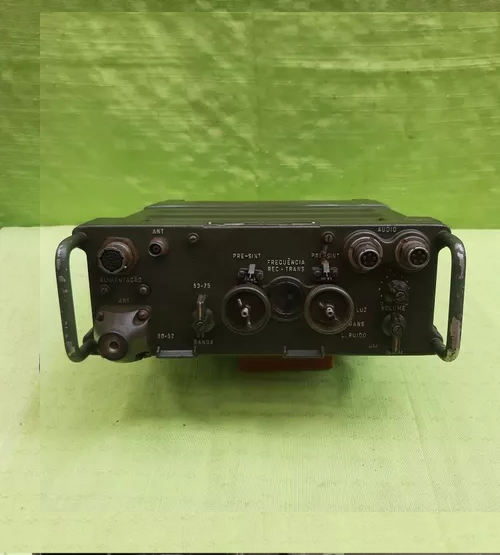

– Receiver / Transmitter EB11-RY20/ERC

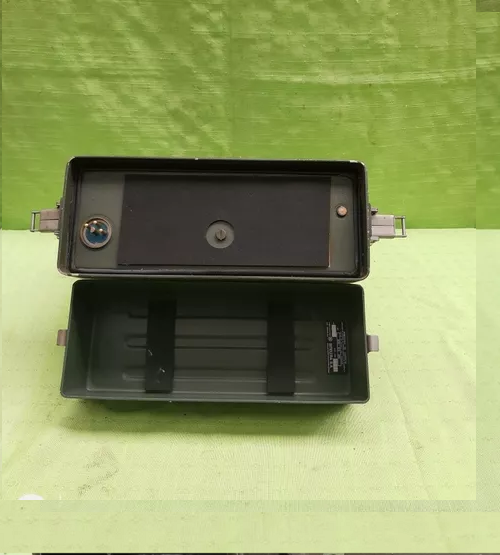

– EB11-KX20/ERC Battery Box

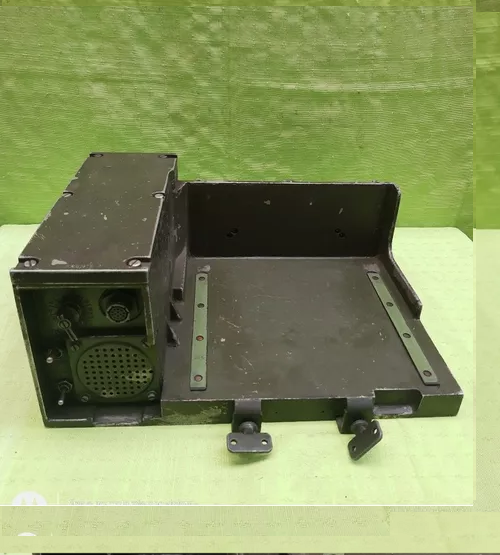

– AF Amplifier and Source EB11-OP20/ERC

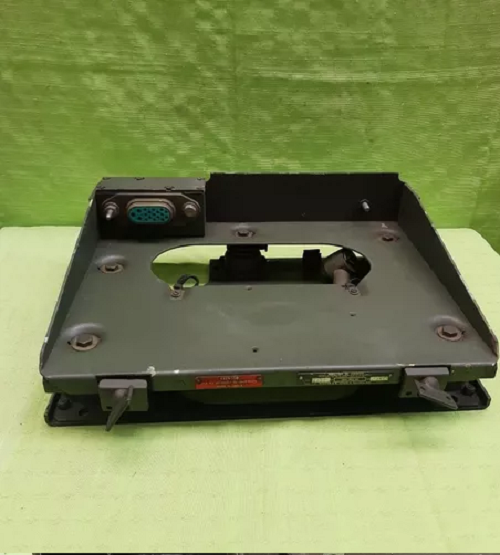

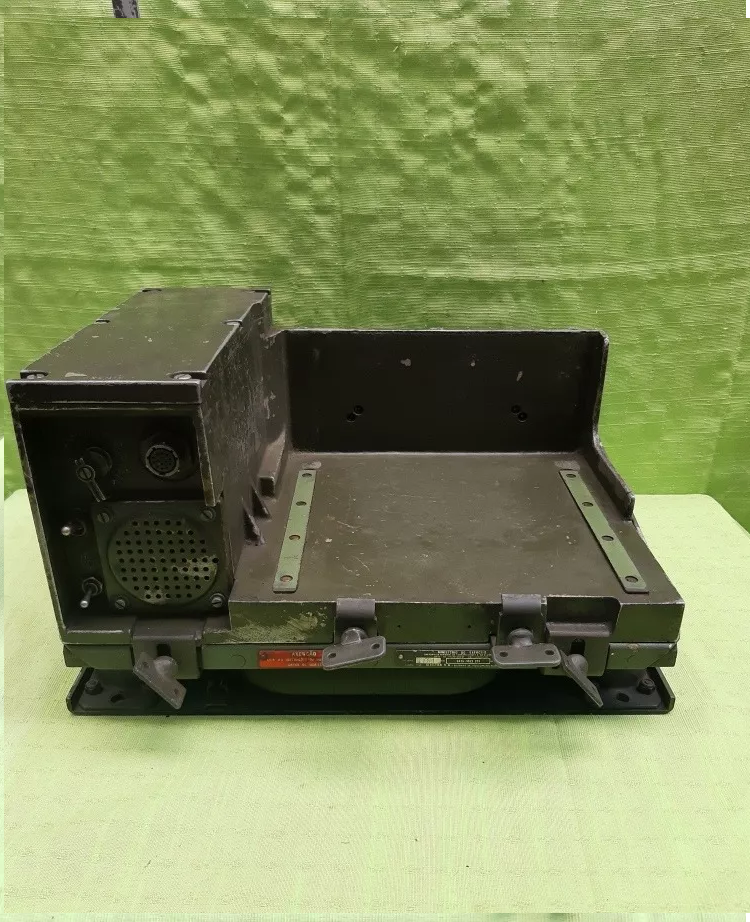

– EB11-MY20/ERC Mounting Base
– Support for Mounting Base EB11-MY10/ERC
– EB11-KV22/ERC Converter
– EB11-CJ22/ERC Telephone Set

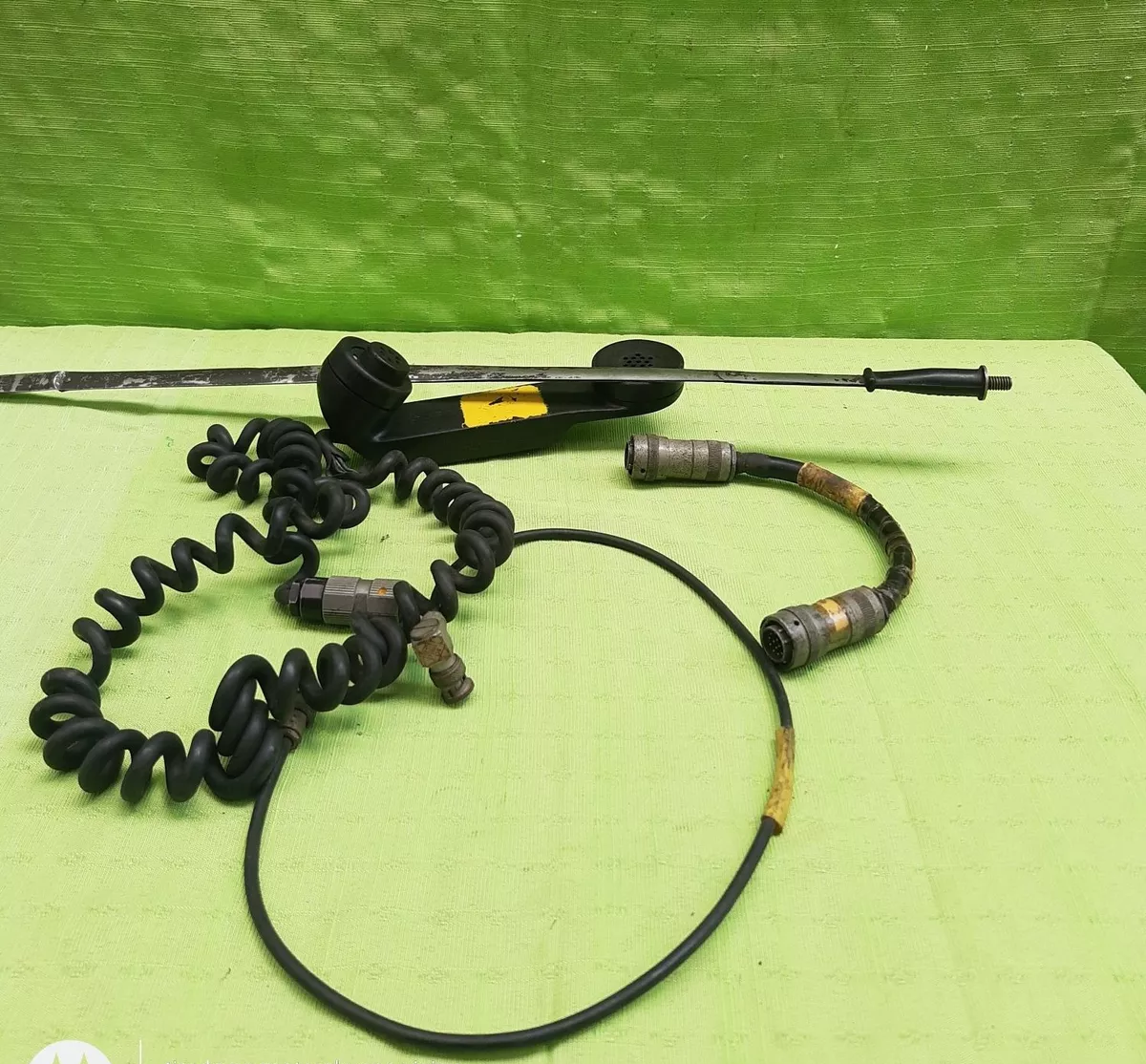

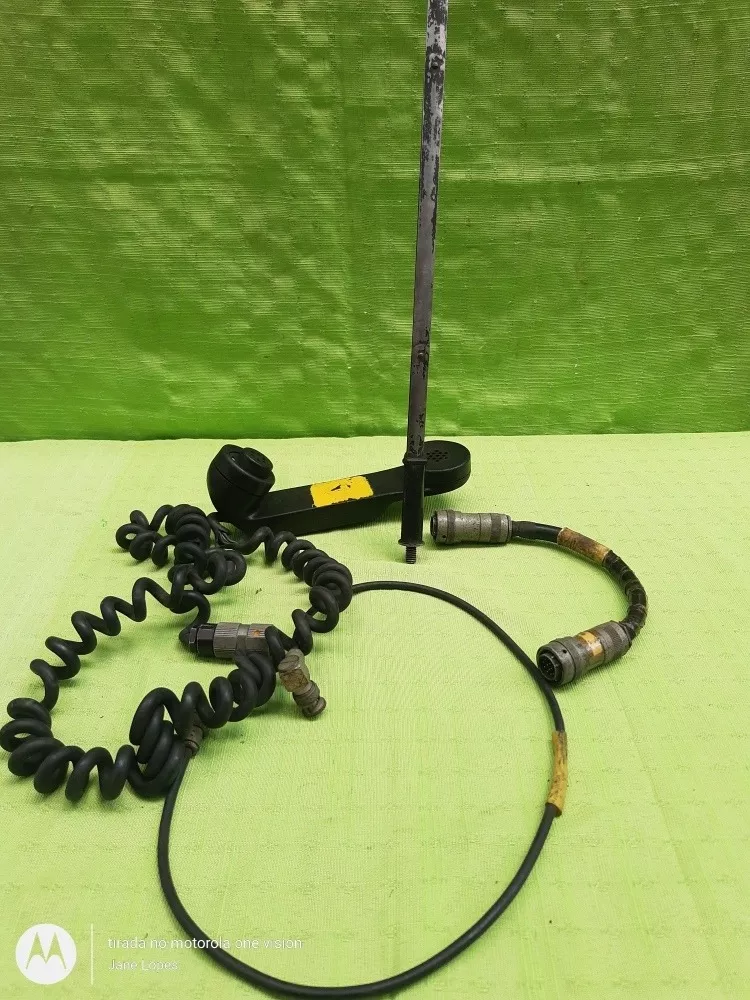

– Connection cables (cabling part)
– Connection Box EB11-KX21 or 26/ERC
Weight: 28 kg.
Dimensions aproximate: 450 x 220 x 520 mm (WIDE/HIGHT/PROF)
